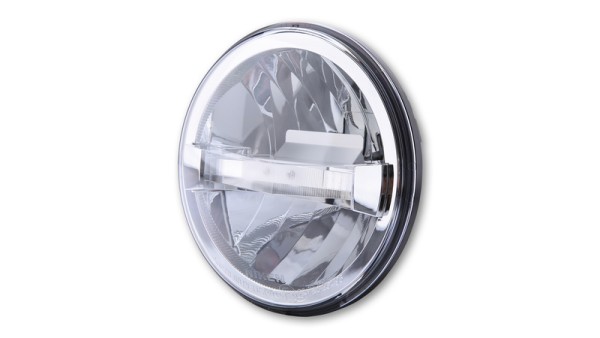

HIGHSIDER pro 7 inch headlight insert type 4 LED E-approved (1pc)

This round, chrome-plated reflector with clear glass has a high beam, low beam, parking light and daytime running light function. The daytime running light and position light are installed in a central strip, creating a very attractive light pattern - the low beam shines above the strip, while the high beam shines below it. The reflector emits an asymmetrical luminous flux - only approved for right-hand traffic - and is E-approved.

Our highlights - give your bike your unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series will definitely turn your bike into a highlight!

Dimensions:
Diameter A = 177 mm
Diameter GA = 168 mm
Diameter I = 160 mm
T = 61 mm
R = 10 mm

Connections:
Black cable = earth (-)
Blue cable = low beam (+), power consumption at 12V: 1.8A, 22W
Yellow cable = high beam (+), power consumption at 12V: 1.3A, 13W
Black cable = ground (-)
TFL:
Black cable = ground (-)
Red cable = daytime running light (+), power consumption at 12V: 1.2A, 14W
White cable = position light (+), power consumption at 12V: 0.2A, 2.4W

Scope of delivery: 1 piece


Note 1:
- Asymmetrical use, only approved for right-hand traffic.
- The enclosed 3-pin standard plug must be fitted by the customer after the reflector has been installed.
View of plug contacts:
High beam (yellow) = right
Low beam (blue) = top
Ground (black) = left

Note 2:
The daytime running light can also be used on vehicles without a light switch. This requires the following components, for example:
Switch: Art. No. 240-044
HIGHSIDER DRL CONTROL- BOX CB1 : Art. No. 208-108 (switches between low beam and daytime running light)
