SW-Motech EVO fog light kit universal for Honda XL 750 Transalp (23-)

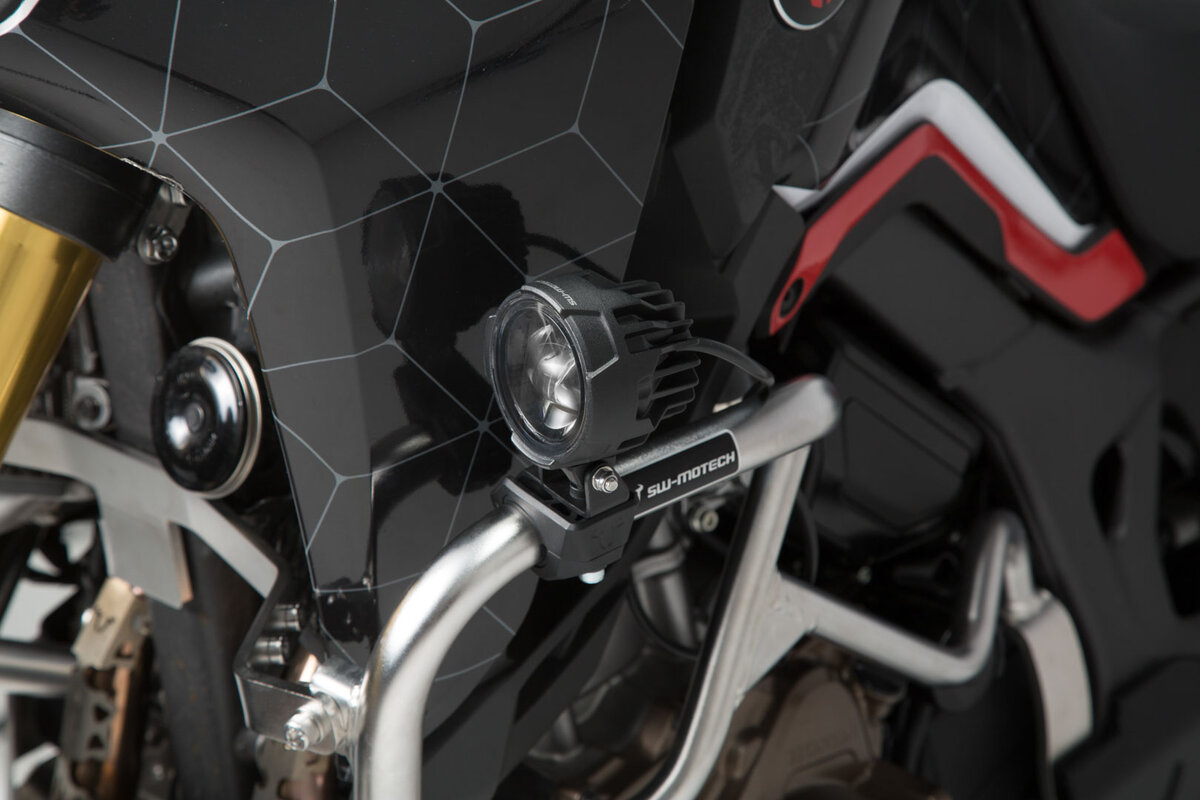

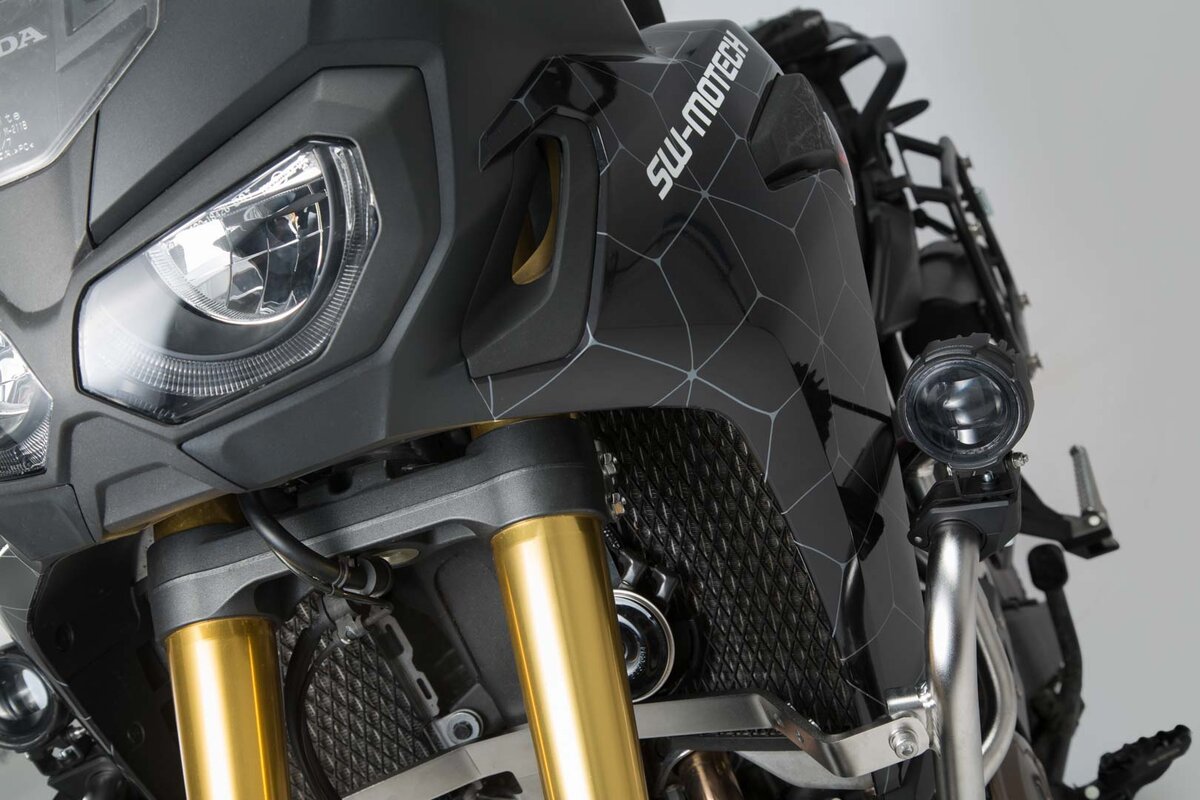

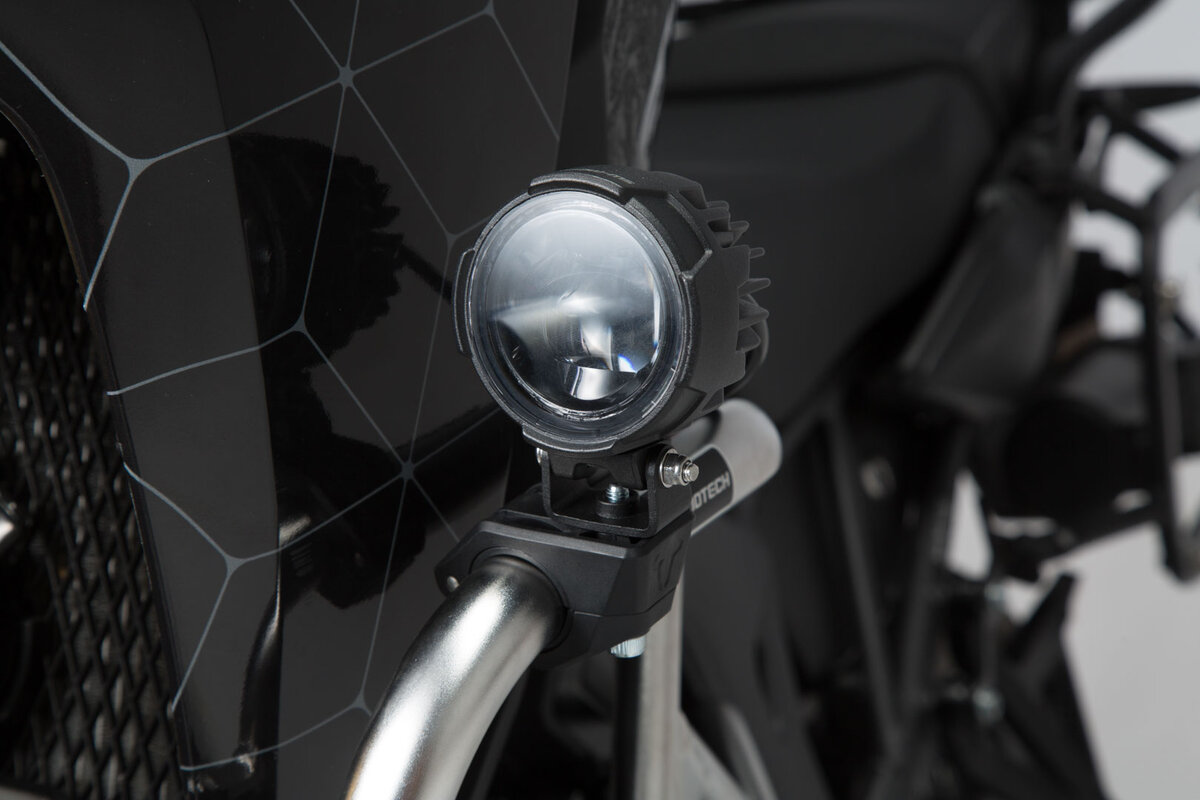

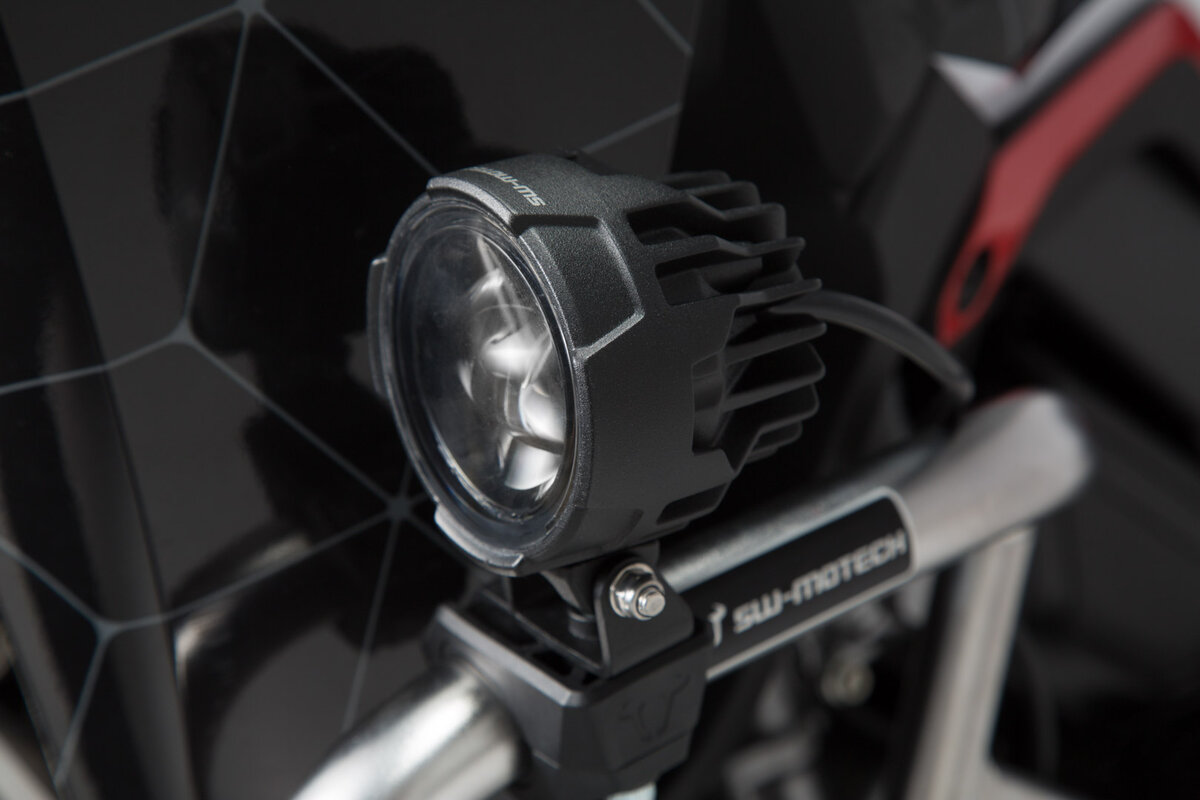

This kit includes all the parts required for simple and secure mounting of the EVO headlights on the crash bar. The crash bar clamps allow the fog lights to be attached to crash bars with different tube diameters. The particularly wide light distribution of the EVO fog lights ensures better "seeing and being seen" in fog or poor weather conditions. This increases safety on the road. SW-MOTECH has sought out a strong partner for the development of the new EVO headlights and relies on the expertise of a long-standing top manufacturer from the automotive sector. The focus of the new development was on a compact shape and meeting the highest quality standards: the EVO fog lights are waterproof and dustproof in accordance with protection class IP69. The virtually wear-free LEDs of the premium headlights ensure optimum visibility for years to come.

Evo fog lights:

• Fault-free and maintenance-free operation thanks to virtually wear-free LEDs, significantly reduced power consumption
• Compact size with a diameter of 7.1 cm
• Waterproof and dustproof (protection class: IP69)
• Voltage: 12 V; wiring harness for easy connection to the motorcycle battery is included, no modification to the motorcycle electrics required
• Splash-proof and illuminated handlebar switch for convenient operation
• Headlights have an ECE approval mark (ECE R19 F3)
• Power: 12 W / luminous flux: 1,050 LM per headlight
• Splash-proof and green illuminated handlebar switch for convenient operation
• Mounting points on all four sides
• Mounting on headlight clamps for crash bars (Ø 22, 26, 27, 28 mm) or on model-specific brackets
• Please note that the "TOP" marking must always be at the top due to the reflector curvature
• Please observe the legal regulations applicable in your country for the operation and installation of fog lights
• Material: aluminum
• Surface: powder-coated
• Color: black
• Dimensions: 7.1 x 7.1 cm
• Total weight: approx. 1.3 kg

Crash bar clamps for Evo fog lights:

• For mounting on crash bars or other vehicle parts with a suitable diameter
• For EVO headlights from SW-MOTECH
• Including rubber inserts for adaptation to 22 mm, 25.4 mm, 26 mm, 27 mm and 28 mm
• Made from glass fiber reinforced polyamide
• Color: black
• Total weight: approx. 0.2 kg

Scope of delivery:
