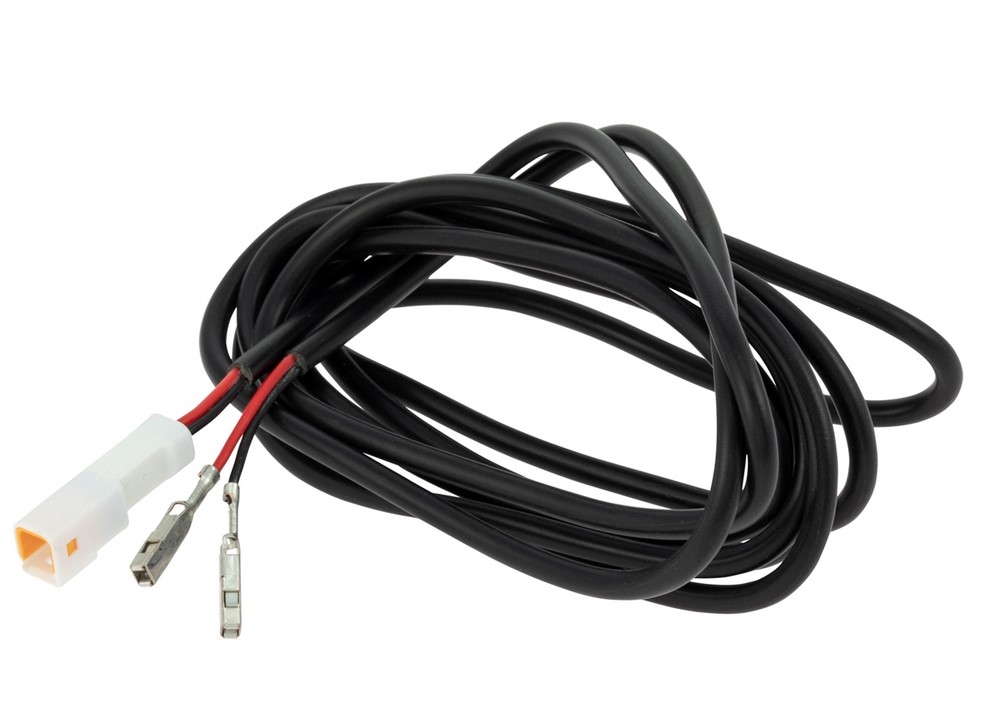

Cable set water temperature connection speedometer for Vespa GTS/GTS Super 125-300cc ('14-)

Since the model series from 2014, where PIAGGIO has installed new speedometers, the Vespa GTS no longer has the water temperature indicator in the display as standard, only the warning light signals the overheating of the engine. The cable set offers in combination with the SIP digital speedometer / tachometer the option on the GTS Facelift models from 2014 to display the water temperature display (bar display on the left in the display).

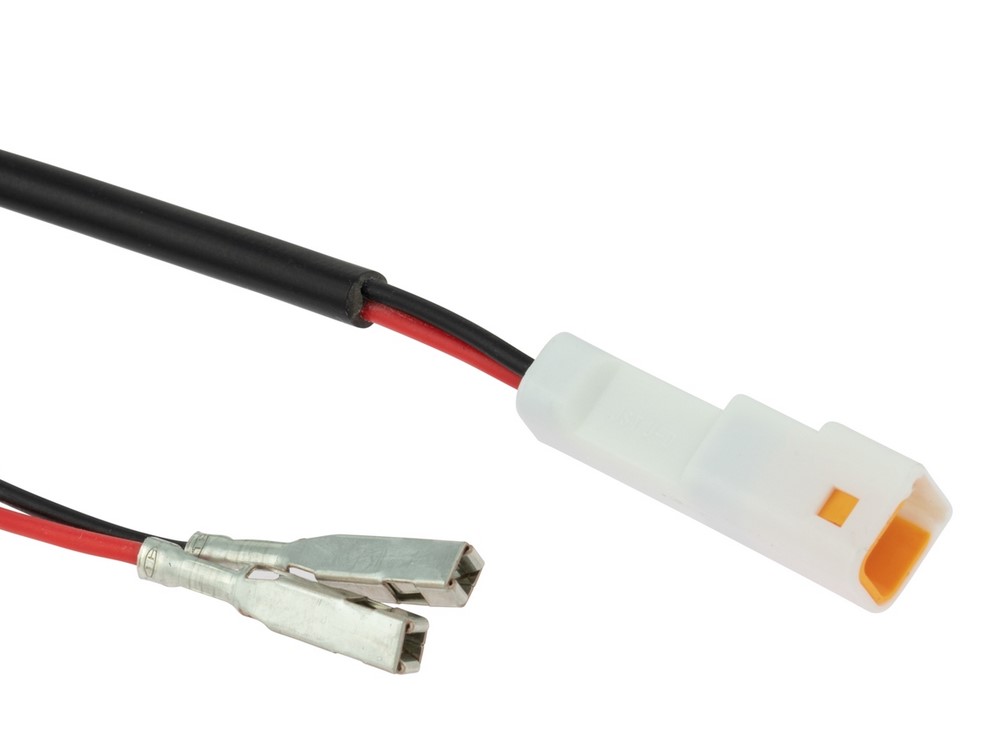

The connection to the speedometer is made at the connector "TEMP B", the cable must then be led through the frame to be connected to the temperature sensor of the engine. The green connector of the temperature sensor is equipped with two pinouts but only two are used. The two remaining slots are equipped with green placeholder pins, these must be pulled with needle nose pliers to insert the connectors of the SIP cable set there. The red cable must be connected to pin no. 2, the black cable to pin no. 4.

ATTENTION: Work on the speedometer such as replacing the speedometer glass, repairs etc. may only be carried out by SIP Scootershop GmbH or specialist workshops. Unauthorized modifications (e.g. opening the speedometer) will void the warranty.
