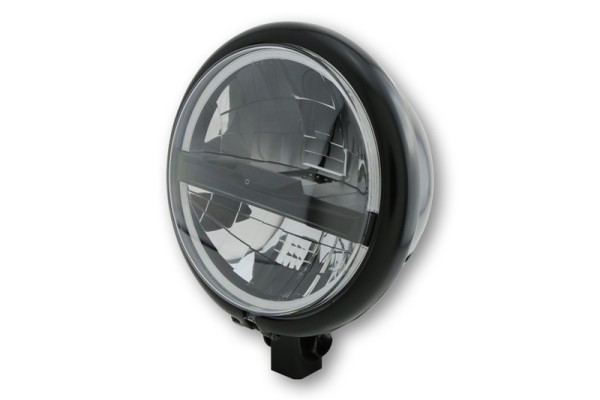

HIGHSIDER pro 5 3/4 inch Headlight Bates Style Type 5 LED Black Lower Mounting

HIGHSIDER pro 5 3/4 inch LED main headlight BATES STYLE TYPE 5, E-approved

Stylish LED headlight with a black metal housing in BATES STYLE design. The round, chrome-plated reflector with black trim and clear glass has a high beam, low beam and parking light function.
The low beam lights up in the upper half and both halves of the headlight light up when the high beam is switched on.
The tested headlight is also robust and easy to install.

Our highlights - give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER pro headlight series make it a highlight in any case!

Dimensions:
Front diameter: approx. 155 mm
Depth: 90 mm, with ring approx. 92 mm
Blind hole diameter: 8.8 mm
Blind hole depth: 10 mm
Screw: 9.4 x 20 mm
Thread: 24G 3/16, 7/32
Height mounting block to ring: approx. 27 mm
Height mounting block: approx. 30 mm
Width/depth mounting block: approx. 22 mm
Height mounting with block, center/center: approx. 39 mm
Mounting: bottom

Connections:
(3-pin plug)
red = low beam (+)
white = high beam (+)
black = earth (-)

brown = position light (+)
black = earth (-)

Scope of delivery: 1 piece
