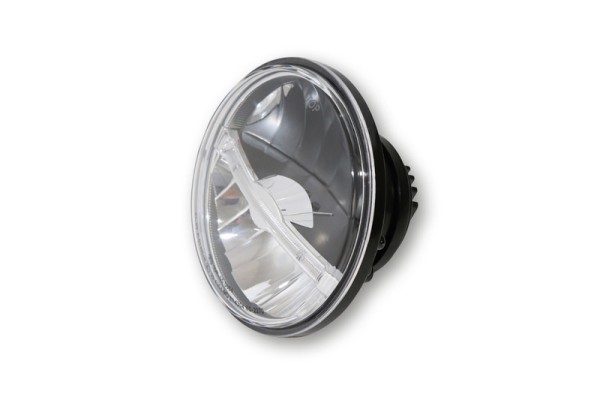

HIGHSIDER pro 5 3/4 inch headlight insert Jackson LED E-approved (1pc)

HIGHSIDER LED main headlight insert JACKSON, 5 3/4 inch

This round, chrome-plated reflector has high beam, low beam and parking light as well as a clear lens. The parking light function is shown in the center of the insert as a light strip (Light Guide System). The reflector emits an asymmetrical - only approved for right-hand traffic - luminous flux, E-approved.

Attract attention - give your bike your unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series will definitely turn your bike into a highlight!

Dimensions
Diameter A = 148 mm
Diameter GA = 134 mm
Diameter I = 128 mm
T = 60 mm
R = 11 mm

Technical specifications
Voltage: 12 V

Connections with triple plug
Black = ground (-)
Blue = low beam (+)
Red = high beam (+)
Separate cables:
Red = parking light/parking light (+)
Black = ground (-)

Scope of delivery: 1 piece

Optional order:
Complete headlight:
5 3/4 inch LED main headlight JACKSON, black and chrome: Art.-No. 223-028 and 223-029
5 3/4 inch main headlight #223-014, 223-015
Plug for H4 bulbs, with 210 mm cable #396-042
Does not fit in the BATES STYLE headlight, 5 3/4 inch (#222-018, -019)
