HIGHSIDER pro 5 3/4 inch headlight insert type 6 LED E-approved (1pc)

HIGHSIDER 5 3/4 inch LED main headlight insert TYPE 6, E-approved

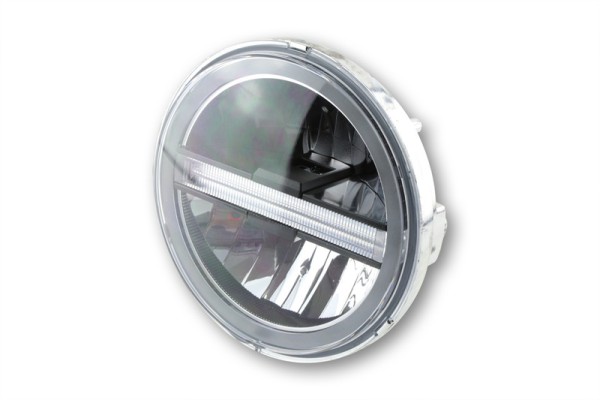

This round, chrome-plated reflector has high beam, low beam, daytime running light and a parking light ring. The daytime running light is located in the center of the strip and the low beam lights up in the upper half of the insert. When the high beam is switched on, both halves light up.

Our highlights - give your bike your unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series will definitely turn your bike into a highlight!

Dimensions:
Diameter A = 143 mm
Diameter GA = 133 mm
Diameter I = 131 mm, T = 70 mm, R = 13 mm
Cable length: 400 mm

Power consumption: (3 pin plug)

Connections:
White = low beam (+)
Blue = high beam (+)
Green = earth (-)
Red = TFL/DRL (+) to ignition positive
Brown = position light (+)

Scope of delivery: 1 piece incl. 1x connector housing


Note:
The daytime running light can also be used on vehicles without a light switch. The following components are required for this:

- Order no. No.: 240-044 LIGHT ON/OFF SWITCH
- Order. No.: 208-108 HIGHSIDER DRL CONTROL- BOX CB1 (switches between low beam and daytime running light)

Note:
If this product in conjunction with the HIGHSIDER DRL CONTROL- BOX CB1 (208-108) causes the headlight not to switch on the daytime running light after starting the engine, please proceed as follows:
Install the enclosed 120 Ohm resistor as specified in the instructions.
The headlight should now also switch on the daytime running light.
