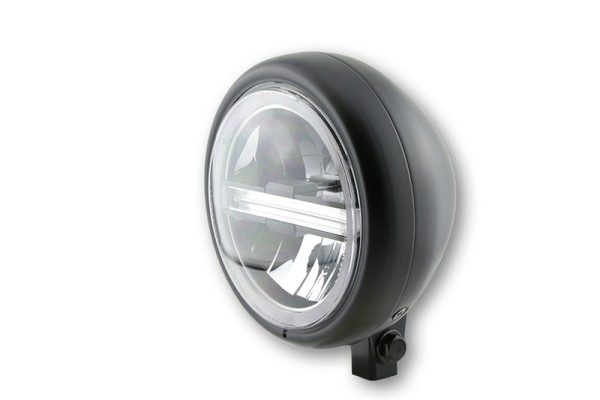

HIGHSIDER pro 5 3/4 inch headlight Pecos Type 6 LED Black Lower mounting, With TFL

HIGHSIDER pro 5 3/4 inch LED headlight PECOS TYPE 6 with TFL, E-approved

The robust, puristically shaped main headlight with matt black metal housing has high beam, low beam and parking light.
The special feature of this LED headlamp is the additional daytime running light.
The PECOS TYPE 6 is characterized by the latest lighting technology and exceptional lighting design.
The daytime running light for even greater visibility on the road divides the reflector into an upper and lower half.
The dipped beam lights up in the upper half of the reflector and the lower half also lights up when the main beam is switched on.
The parking light forms the outer ring around the reflector.
The simple design is ideal for classic bikes, roadsters and custom bikes.

Eye-catching - give your bike an unmistakable style!
The unusual design and perfect technology of the HIGHSIDER pro headlight series will definitely turn your bike into a highlight!

Features:
- Light source: LED
- Lens: clear
- Housing: matt black metal housing
- Reflector: chrome-plated with TFL/DRL and parking light ring
- Mounting point: bottom, adjustable or on the side of the housing

Dimensions:
- Housing Ø: 165mm
- Inner Ø of the ring: 136mm
- Total depth: 135mm (incl. lens) - Weight: 12 kg. Glass)
- Weight: 1250g
- Mounting height: 36mm (measured to lower edge of lamp ring)
- Fastening: Screw 25x12mm (thread 24G 3/16 7/32)

Connections

3-pin plug:
- White = low beam (+)
- Blue = high beam (+)
- Green = ground (-)

Separate cables:
- Red = TFL/DRL (+) to ignition positive
- Brown = Parking light (+)

Power consumption:
- Low beam 15W at 12V (According to manufacturer 1106.2lm)
- High beam 27W at 12V(According to manufacturer 1657.9lm)

Scope of delivery: 1 piece

Can be ordered optionally:
- HIGHSIDER pro DRL CONTROL- BOX CB1 , Daytime running light control box for vehicles without light switch, 12V Art.-No.: 208-108
- Light switch on/off with clamp for handlebar mounting e.g. ArtNo.: 240-044

Note:
If, when using this product in conjunction with the HIGHSIDER pro DRL CONTROL BOX CB1 (208-108), the headlight does not switch on the daytime running light after starting the engine, please proceed as follows:
Install the enclosed 120 Ohm resistor as specified in the instructions.
The headlight should now also switch on the daytime running light.
