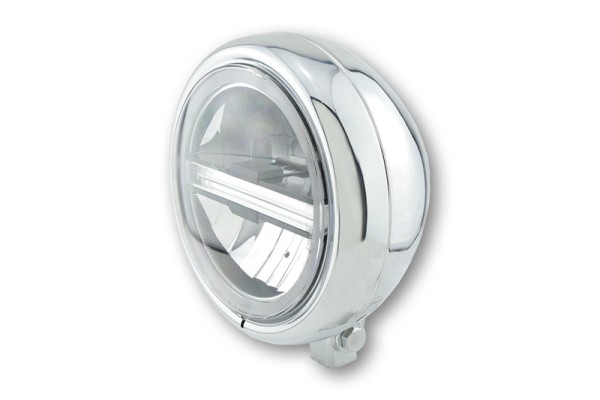

HIGHSIDER pro 5 3/4 inch Headlight Pecos Type 6 LED Chrome With TFL, E-approved (1pc)

HIGHSIDER 5 3/4 inch LED headlight PECOS TYPE 6 with TFL, black matt or chrome-plated, E-approved

Puristically shaped main headlight with metal housing for lower mounting. The PECOS TYPE 6 is characterized by the latest lighting technology and exceptional lighting design. The special feature of this LED headlight is the additional equipment with daytime running light and parking light ring. The daytime running light for even greater visibility in road traffic is located in the centrally positioned strip. The low beam lights up in the upper half of the headlight and both halves light up when the high beam is switched on.

Attract attention - give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Features:
- Light source: LED
- Lens: clear
- Chrome-plated reflector with TFL/DRL and parking light ring
- Mounting point: bottom

Dimensions:
Housing diameter: 165 mm
Depth: 135 mm

Connections:
Power consumption: 3-pin plug
White = low beam (+)
Blue = high beam (+)
Green = earth (-)
Red = TFL/DRL (+) to ignition positive
Brown = position light (+)

Scope of delivery: 1 piece

Can be ordered as an option:
- Order no. 208-108 HIG. No.: 208-108 HIGHSIDER DRL CONTROL- BOX CB1 , Daytime running light control box for vehicles without light switch, 12V
- Prod. No.: 240-044 Light switch on/off with clamp for handlebar mounting

Note:
If this product in conjunction with the HIGHSIDER DRL CONTROL- BOX CB1 (208-108) causes the headlight not to switch on the daytime running light after starting the engine, please proceed as follows:
Install the enclosed 120 Ohm resistor as specified in the instructions.
The headlight should now also switch on the daytime running light.
