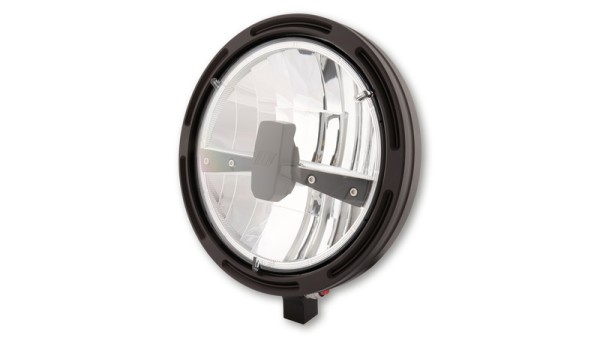

HIGHSIDER pro 7 inch headlight Frame-R1 Type 3 LED Black Lower mounting

HIGHSIDER pro LED main headlight FRAME-R1 TYPE 3, E-approved
- Mounting WITHOUT housing, a light goes on. -

Every centimeter counts when it comes to positioning the headlight as closely as possible between the two stanchions in the fork. REDUCED TO THE MAX was the premise behind the development of the innovative FRAME headlight mount. The purist aluminum ring makes it possible for the first time to mount various LED headlight inserts free-standing on the motorcycle. By deliberately dispensing with a headlight housing, an unbeatably narrow installation position is made possible and better cooling of the LED unit is also achieved.

On many motorcycles, the H4 or H7 lamp lights up, more or less twinkling away. Seeing better usually also means being seen better, which is not unimportant as summer turns to fall and in times when cars are increasingly equipped with bright daytime running lights. Whether as a replacement for better visibility at night, better visibility during the day or to give the motorcycle a more attractive appearance, if you are looking for a stylish and innovative power headlight, the FRAME-R1 LED main headlight is an excellent choice.

Two different mounting systems are available for variable attachment of the headlight.
- Side Mount, the conventional screw connection on the side of the lamp holder
- Bottom Mount, attachment at the bottom for screwing onto the fork bridge

The side-mount holders can be mounted in three positions, thus compensating for 32mm in installation depth and 46mm in width.

Features:
- Round 7 inch headlight with CNC mounting ring and mounting kit
- Mounting WITHOUT a headlight housing
- Improves cooling
- Many installation optionsglichkeiten
- Flat installation
- Modern look, stylish and innovative
- Chrome-plated reflector with black cover
- High beam, low beam and parking light
- Asymmetrical luminous flux
- E-approved, nothing needs to be registered

Give your bike your unmistakable style! The unusual design and perfect technology of the HIGHSIDER pro headlight series will definitely turn your bike into a highlight!

Dimensions:
A diameter = 200 mm
GA diameter = 168 mm
I diameter = 160 mm
T = 61 mm
R = 10 mm

Connections: 3-pin combination plug
Red cable = low beam (+)
White cable = high beam (+)
Black cable = earth (-)

Connection of the position light (parking light)
Brown cable = position light (+)
Black cable = earth (-)

Scope of delivery: 1 piece

Note:
Asymmetrical use, only approved for right-hand traffic.
