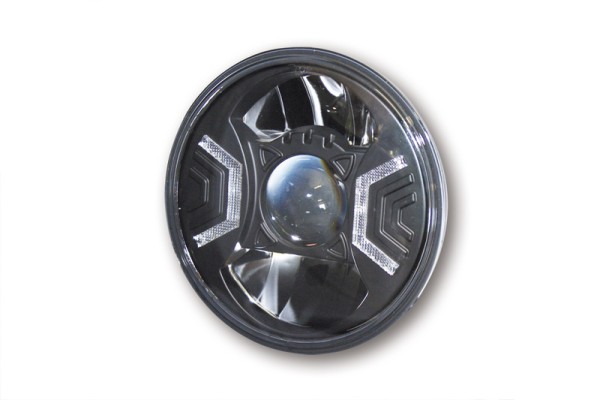

HIGHSIDER pro 7 inch headlight insert type 2 LED black E-approved (1pc)

HIGHSIDER 7-inch LED main headlight insert TYPE 2

This round, black or chrome-plated reflector has high beam, low beam and parking light functions and emits an asymmetrical - only approved for right-hand traffic - luminous flux, E-approved.

See and be seen - give your bike an unmistakable style!
The unusual design and perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions:
Diameter A = 176 mm
Diameter GA = 165 mm
Diameter I = 160 mm
Diameter heat sink K = 99 mm
T = 81 mm
R = 8 mm

Technical data:
Power consumption at 12.5 volts DC:
Low beam: approx. 1.6 amps (20 watts).
12 volts 1450 lumens
Only the upper reflector and the middle ellipsoid insert light up.

High beam: approx. 1.6 amps (20 watts).
12 volts 1582 lumens
Only the upper and lower reflectors light up. When the headlight flasher is activated, the middle ellipsoid insert goes out.

Connections:
The following 3 cables end in a combination plug:
Black = earth (-)
Red = positive high beam (+).
Blue = plus low beam (+).
Additional 2 cables for parking light:
Black = earth (-)
Red = parking light (+)
White = connection for control indicator (can be used optionally)

Scope of delivery: 1 piece

Notes:
Asymmetrical insert, only approved for right-hand traffic.
The reflector can also be ordered complete with black housing:
Part no. 223-184 and 223-131.
