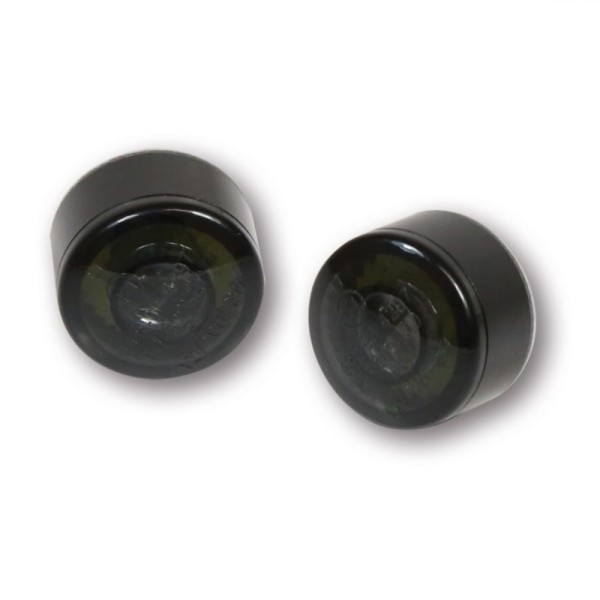

HIGHSIDER pro Apollo LED indicator/position light black/tinted 2in1, E-approved (pair)

HIGHSIDER APOLLO MODUL 2in1 LED indicator/position light, E-approved for front

LED indicator/position light module suitable for installation or surface mounting, black aluminum ring with tinted glass. With this innovative lighting technology, 2 very bright SMD LEDs are installed in the center, enabling an extremely small design. The outer ring, on the other hand, consists of the new COB technology (Chip On Board). The new LED chip embedding for high-performance LEDs achieves a very high luminance with the best possible efficiency and service life. This also enables higher light values to be achieved than with conventional LEDs. This module is supplied with a black anodized aluminium ring that fits over the base body.

In the right direction - with the innovative blinker series from HIGHSIDER. Show not only where you want to go, but also who you are. This is trend-setting design at its best.

Installation location: Front

Dimensions:
A1: 13 mm
A2: 9 mm
D1: 22 mm
D2: 20 mm
Threaded bolt M8, length: 12 mm

Connections:
Black cable = ground (-)
Yellow cable = blinker (+)
White cable: Parking light (+)

Scope of delivery: 1 pair

Note:
The unit can be installed flat without the aluminum ring so that only the lens is visible. A 20 mm hole must be drilled for this.
Alternatively, the unit can be mounted with the aluminum ring, e.g. on a mounting plate on the vehicle, see instructions.
