HIGHSIDER pro LED daytime running light black round (1pc)

HIGHSIDER LED daytime running light, E-approved

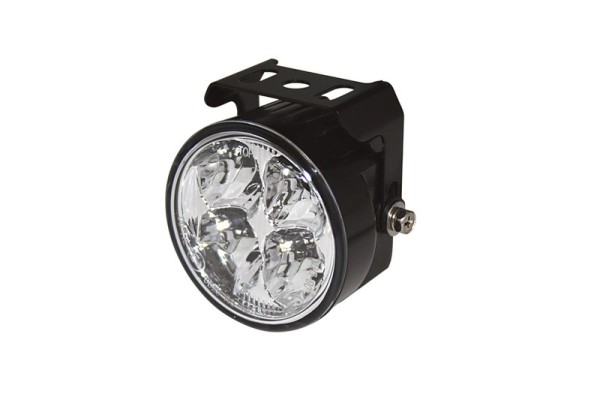

The LED daytime running light with 4 LEDs is installed in a round, black-painted aluminum housing. The powerful LEDs significantly increase the perception of motorcyclists by other road users.

See and be seen - give your bike personality! The unusual design and perfect technology of the HIGHSIDER headlight series will definitely make you a sensational highlight!

Dimensions:
Diameter: 71.5 mm
Depth: 47.5 mm

Technical specifications:
Power consumption at 12.5 volts: only 0.2 amps (approx. 2.5 watts)
Luminous flux at 12 volts: 150 lumens

Connections:
Black cable: earth (-)
Red cable = plus (+), is connected to switched plus (ignition).
White cable = control cable to parking light

Scope of delivery: 1 piece

NOTE 1 - WITH existing light switch:
A manually switched low beam (light switch) is a prerequisite for operating the daytime running lights (TFL), as otherwise the function of the TFL would be canceled.
According to road traffic regulations, the TFL must be connected so that it goes out when the main headlight is switched on.
(exception: actuating the headlight flasher). The rear tail light must always remain switched on, i.e. set to ignition plus.

NOTE 2 - WITHOUT existing light switch:
The daytime running light can also be used on vehicles without a light switch. The following components are required for this:
Switch: Art. No. 240-044
HIGHSIDER DRL CONTROL- BOX CB1: Art. No. 208-108 (switches between low beam and daytime running light)
