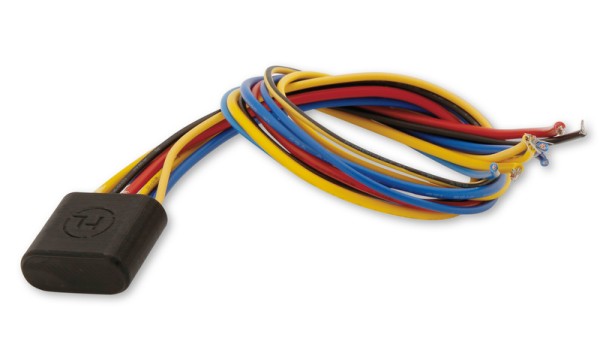

HIGHSIDER pro relay electronics, two-channel, 6-14V

HIGHSIDER Electronic two-channel relay 6-14V
(Even more functions than the predecessor HIGHSIDER Plus - Minus Converter CB3)
It is possible to control the desired function via both plus and minus.
An electronic, dual relay with inputs for all standard pushbuttons or switches.
If one of the two inputs is connected to earth or plus via a switch, the corresponding 12 V output is switched on.
The outputs can supply lines up to 40 W in continuous operation.
Typical power consumers that are operated via non-latching buttons (e.g. horn, low beam, high beam, etc.) can be controlled with the HIGHSIDER two-channel relay.
The use of the relay instead of a direct connection of the load to the switch enables the use of the smallest cable cross-sections and push-buttons with low current values.

Example 1:
You want to use a small push-button with a low flow current to switch a horn (high current consumption), for example. To prevent the button from being damaged by the normal power consumption, simply use this electronic relay.
It allows you to use switches or buttons to switch high currents.
Example 2:
On some motorcycles (e.g. INDIAN), the blinker signal is switched to ground.
This means: With the help of the electronic two-channel relay, you can now convert the grounded blinker signal to positive. This means that all indicators, indicator/tail light combinations or indicators/position lights can still be used.
(To convert to an indicator/tail light combination (e.g. 254-540) you need 1 x the electronic relay for your vehicle)

Product advantages:
- Extremely thin cable cross-sections for connecting the buttons
- Use of switches for low currents despite consumers with high currents
- Extends the service life of switches
- 2 independent channels
- Very small dimensions and low weight Very small dimensions and low weight
- Fully sealed product (waterproof)
- Smaller and more flexible than expensive multi-channel switch boxes
- Protection against all possible wiring errors
- More flexible than - ALL IN ONE SMART BOXES -

Dimensions:
Width: 17 mm
Depth: 9.5 mm
Height: 17 mm
Weight: 9 g

Connections:
Red (thick) = ignition plus 12V (+)
Yellow (thick) = work output CH2 (+)
Blue (thick) = work output CH1 (+)
Yellow (thin) = activation plus signal CH2
Blue (thin) = activation plus signal CH1
Yellow/black (thin) = activation minus signal CH2
Blue/black (thin) = activation minus signal CH1
Maximum power: 40 watts

Scope of delivery: 1 piece
