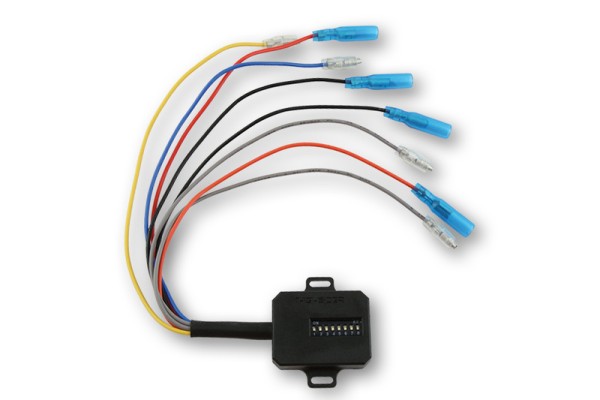

HIGHSIDER smart CBW1 Resistor For Vehicles With Can-Bus (1pc)

HIGHSIDER CAN-BUS resistor CBW1 with DIP switch.

Our newly developed HIGHSIDER CAN-BUS resistor CBW1 is suitable for most vehicles with a CAN-BUS system.

The CBW1 resistor provides a required electrical load for your vehicle which, if the DIP switches are set correctly, means that there is no error message in the cockpit for accessory indicators.

It is also fail-safe. This means:
If the accessory indicators fail due to an electronic defect, an error message is immediately displayed in the cockpit.

Up to 2 channels can be operated, such as rear left and rear right indicators.
If 2 pairs of indicators (VL, VR, HL, HR) are replaced, 2 x CBW1 are required.

What requirements must be met in order to use the CBW1 on the vehicle:
Either:
LED indicators have been installed on the vehicle in their original condition.
Or:
The vehicle has a CAN-BUS system.

If none of the requirements are met, the CBW1 can therefore not be installed (!), then we recommend the following resistors for the vehicle:
For indicators with 21 watts
6.8 Ohm item number 207-025
or
10 Ohm item number 207-028

For indicators with 10 watts
27 Ohm item number 207-020

The following resistance values can be set:
150 Ohm
170 Ohm
200 Ohm
240 Ohm
300 Ohm
400 Ohm
600 Ohm
1200 Ohm

Dimensions:
Height = 11 mm
Width = 31 mm (without lugs)
Width = 46 mm (with lugs)
Length = 40 mm
Cable length = 200 mm with pins

Connections:
Yellow = input channel 1 (+)
Orange = output channel 1 (+)
Blue = input channel 2 (+)
Red = output channel 2 (+)
Grey = input ground (-)
Black = output ground (-)

Scope of delivery: 1 piece

Notes:
Up to 2 channels can be operated.
The connection is explained in detail in the operating instructions!
