Kellermann power resistor, Micro 1000, i.LOAD-IL10

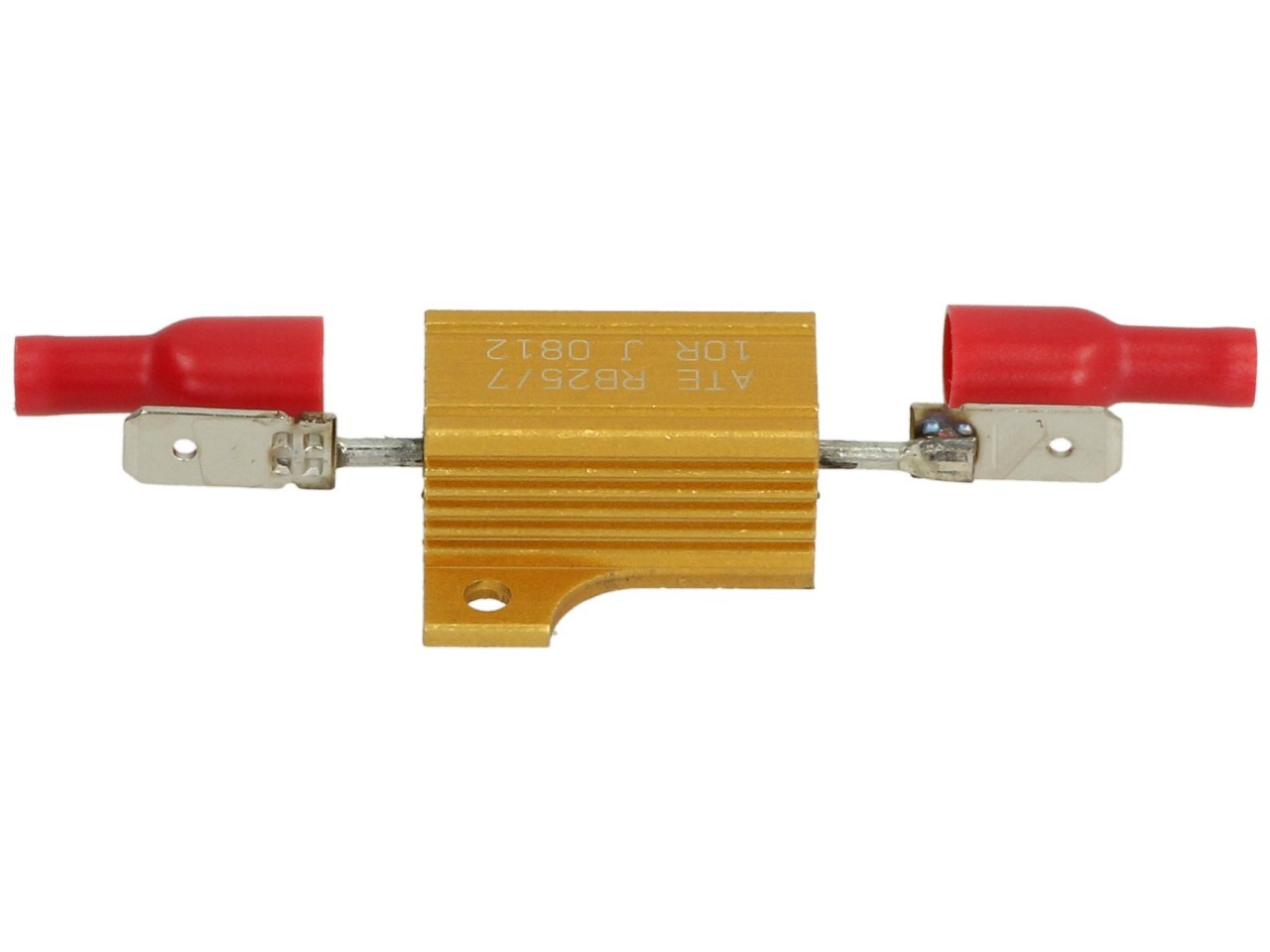

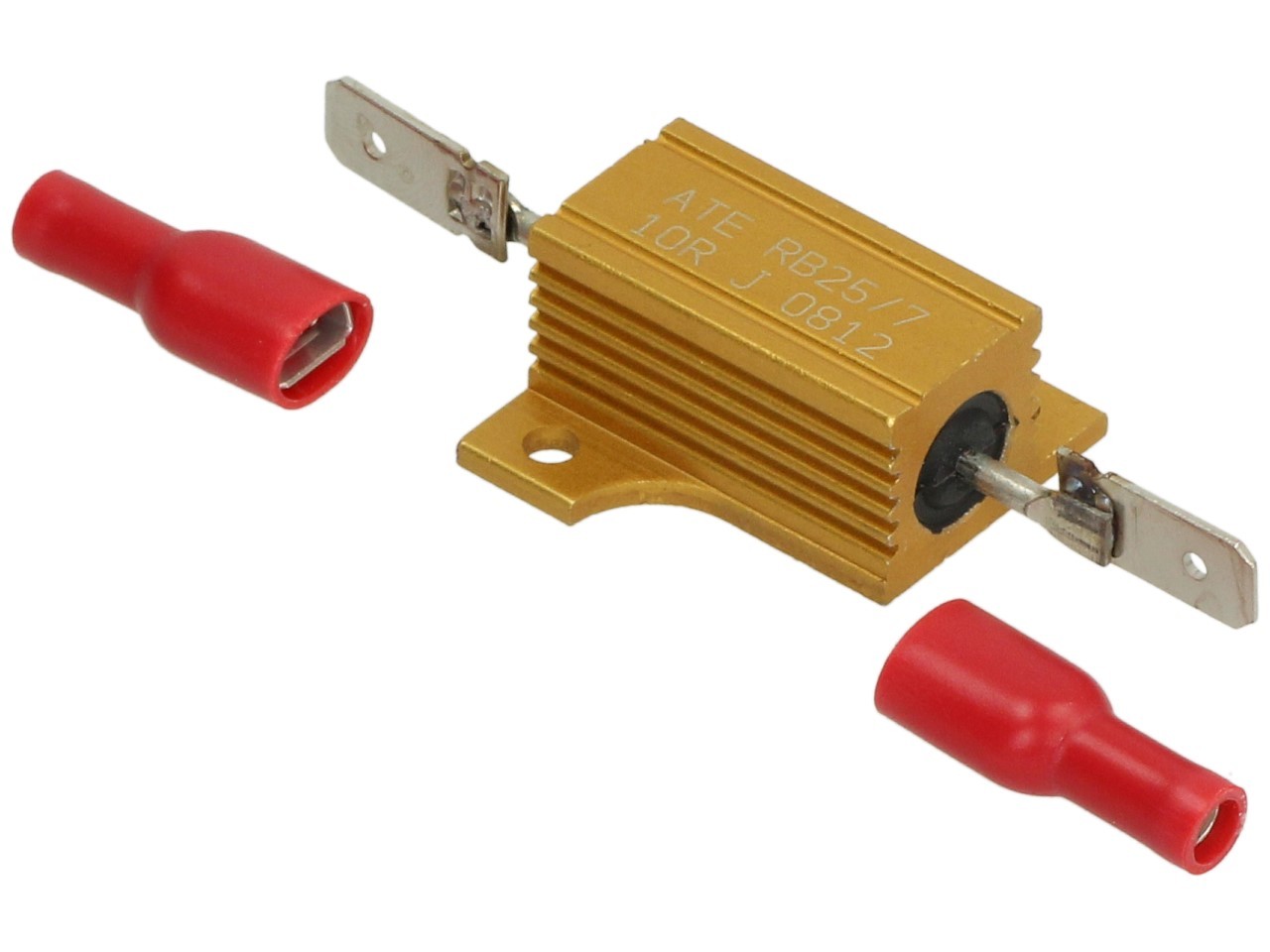

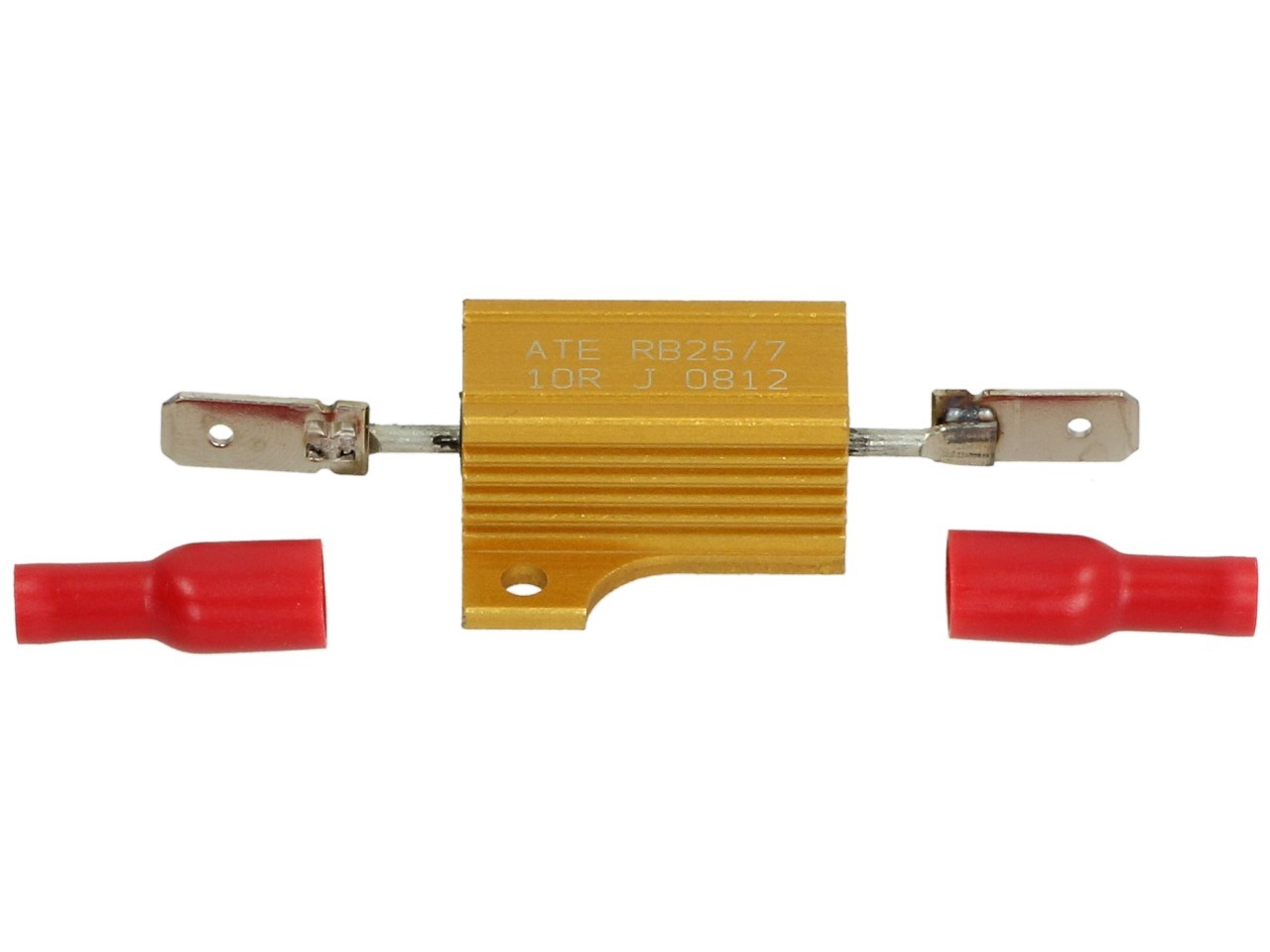

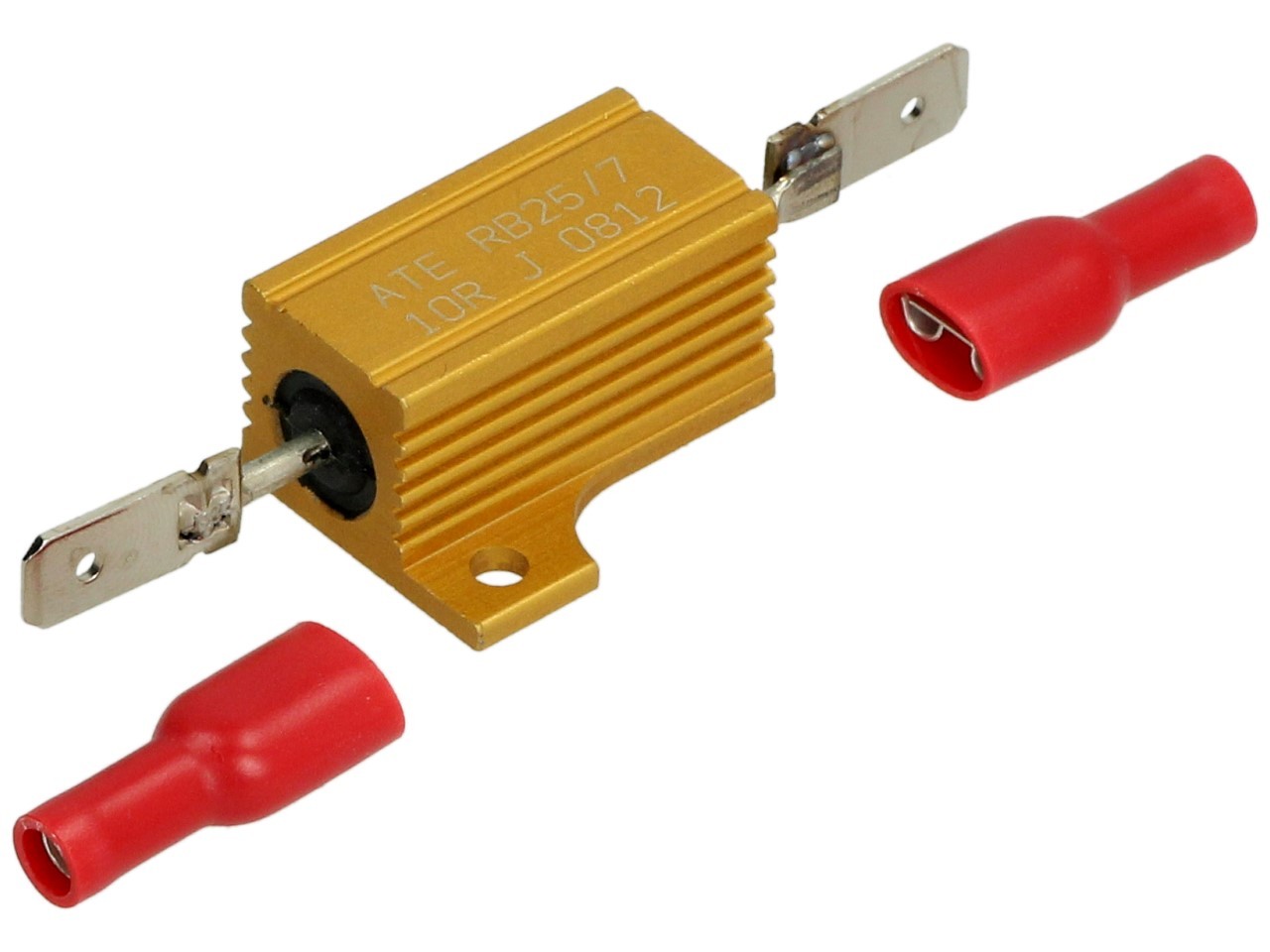

Kellermann resistor i.LOAD - IL10. Power resistor 10 Ohm, 25 Watt

Dimensions 10x10x25 mm. Please refer to the installation instructions.
If original turn signals are converted to LED or halogen turn signals, the flashing frequency changes. The use of parallel connected power resistors counteracts this.
Suitable power resistors for Kellermann turn signals are listed in the listing.
With micro 1000 / Rhombus DF / DF Dark and a lighting indicator, 1 resistor á 33 Ohm for the tail light and 1 resistor á 7.5 Ohm for the brake light are additionally required.

Required power resistor when converting to Kellermann turn signals (per turn signal) at 21 watts power consumption of the original turn signals:

• micro 1000 Halogen - 10 Ohm Art. 133.123950
• micro 1000 / micro Rhombus (yellow, white, Dark, DF, PL, Extreme) - 7.5 Ohm Art. 133.123952
• BL 1000 Halogen (yellow, white, SG) - no power resistor
• BL 1000 LED (LED, Dark, PL) - 7.5 Ohm Art. 133.123952

Required power resistor when converting to Kellermann turn signals (per side) at 10 Watt power consumption of the original turn signals:

• micro 1000 Halogen - 10 Ohm Art. 133.123950
• micro 1000 / micro Rhombus (yellow, white, Dark, DF, PL, Extreme) - 10 Ohm Art. 133.123950
• BL 1000 Halogen (yellow, white, SG) - no power resistor
• BL 1000 LED (LED, Dark, PL) - 10 Ohm Art. 133.123950

Component Lighting: Power resistor
Type designation: i.LOAD-IL10
Product series: Micro 1000

Price per piece

The Kellermann ABC:
What do the abbreviations in the product name mean?

BL > turn signal
DF > triple function (turn signal, brake and rear light)
hm > horizontal mounting
PL > position light (in addition to the turn signal in front)
RB > rear and brake light
SG > single glass (handlebar end turn signal with only one glass)
vm > vertical mounting
WL > white Light
