Kriega US drypack mounting kit for Ducati Scrambler

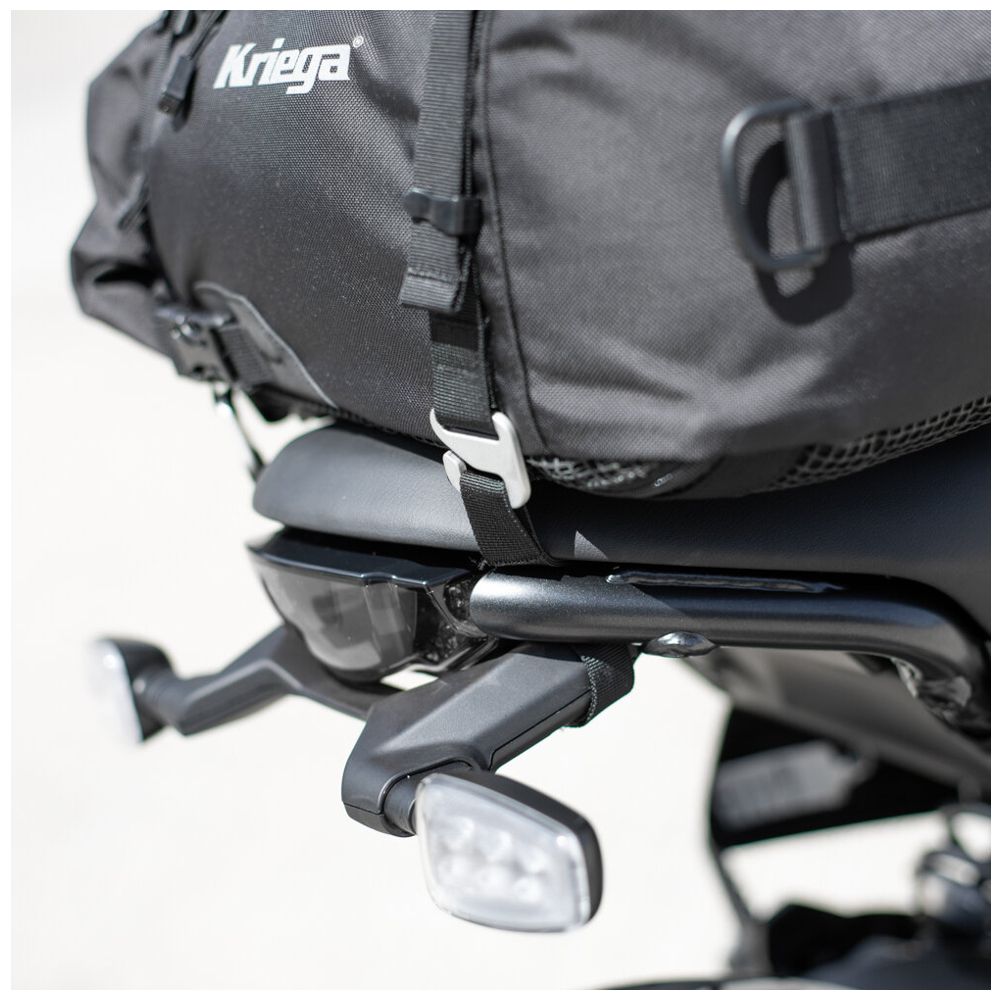

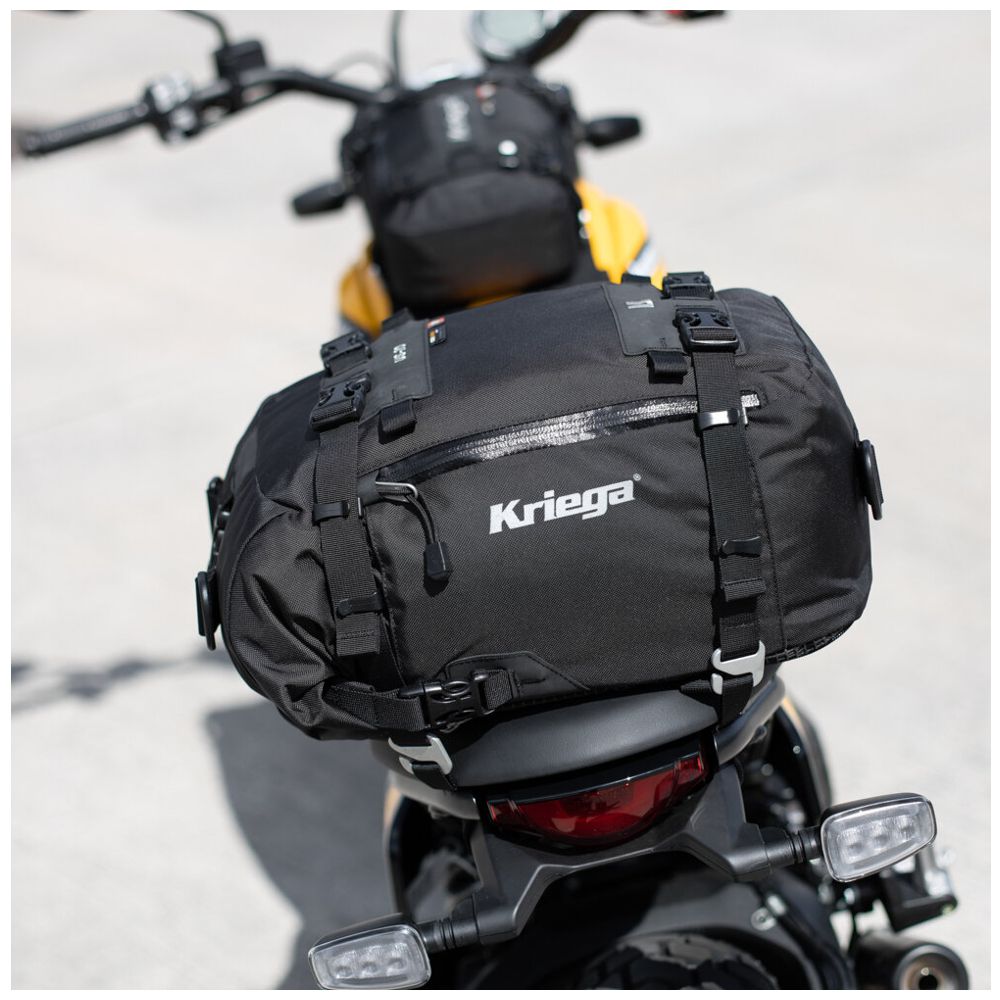

The US Drypack Mounting Kit is specifically designed for the 2019 Ducati Scrambler motorcycle model. High quality Hypalon™/Nylon webbing loops that can be attached under the seat using the existing attachment points. Once mounted, they allow easy attachment of any size or combination of Kriega's US Drypacks.

Scope of delivery

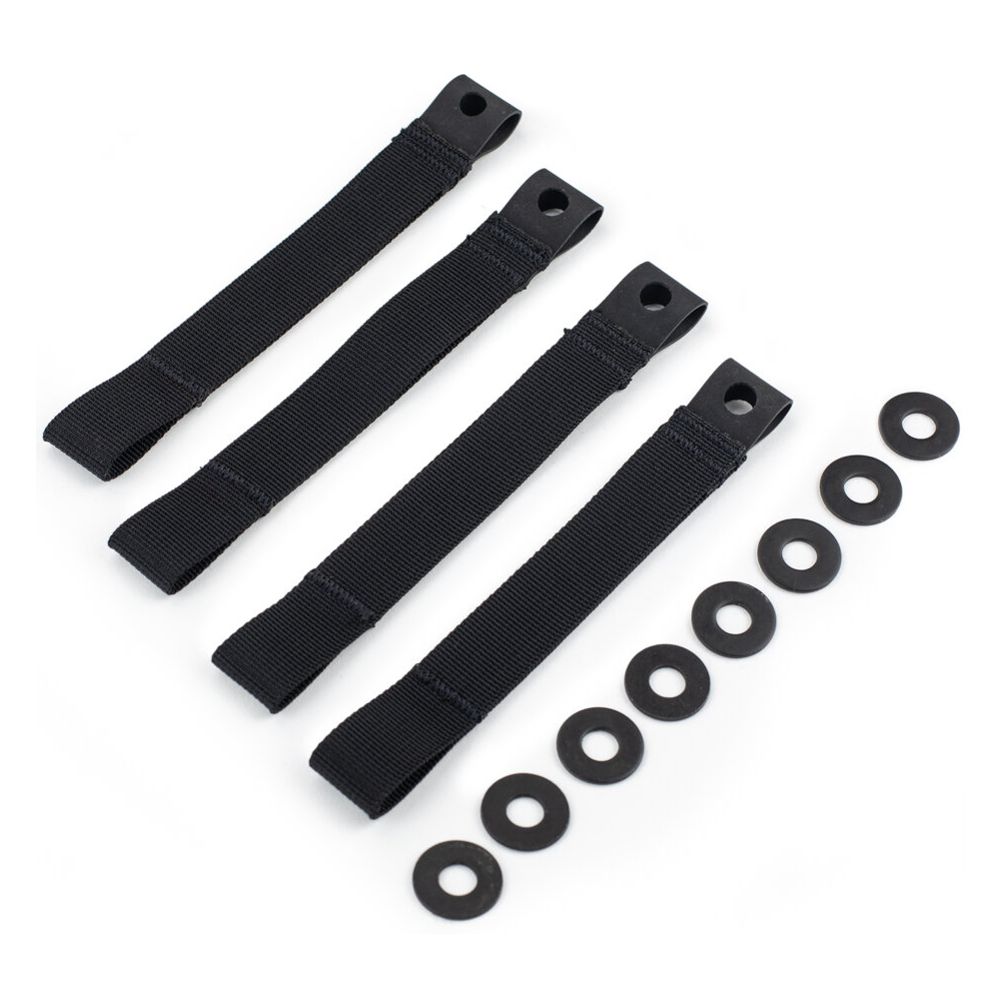

• 4x 155 mm Hypalon loops
• 8x M6 washers

Installation

1. Remove the seat and loosen the two bolts securing the pillion seat.

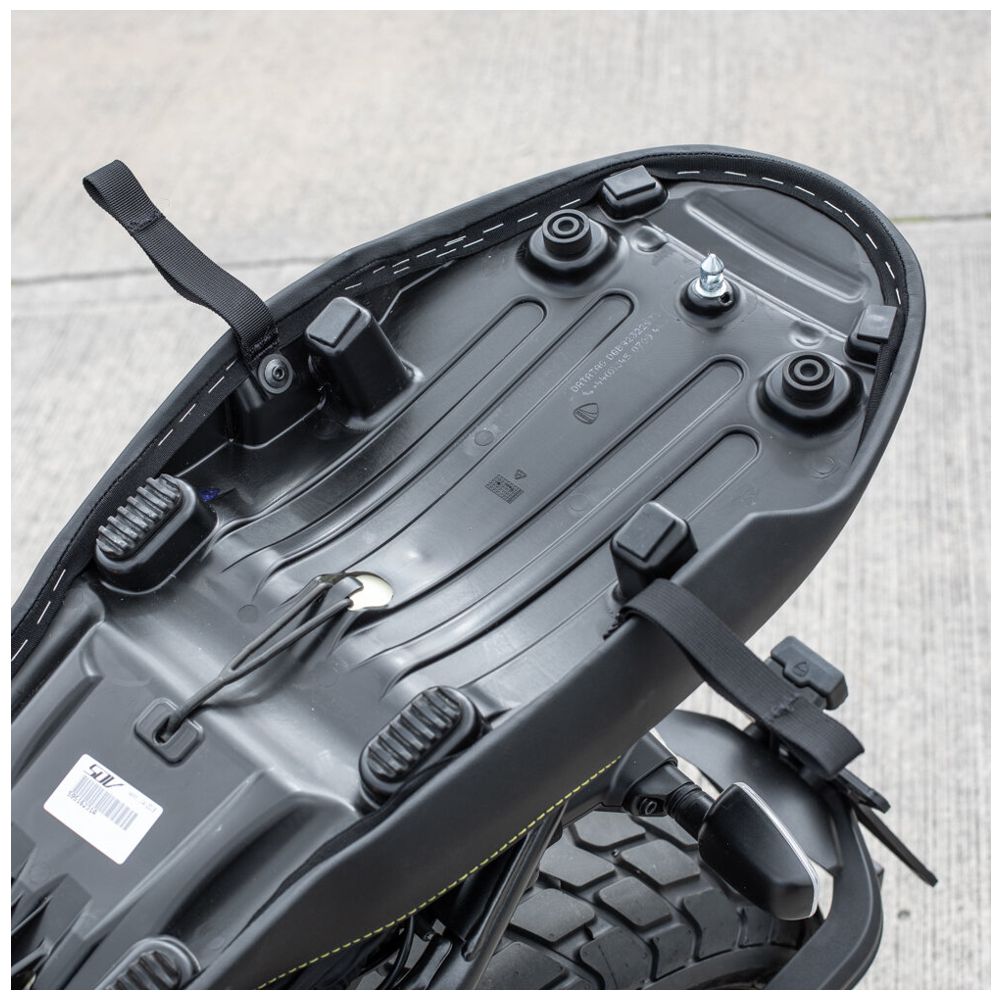

2. Slide M6 washer onto the bolts and install the two loops on the bottom of the seat.

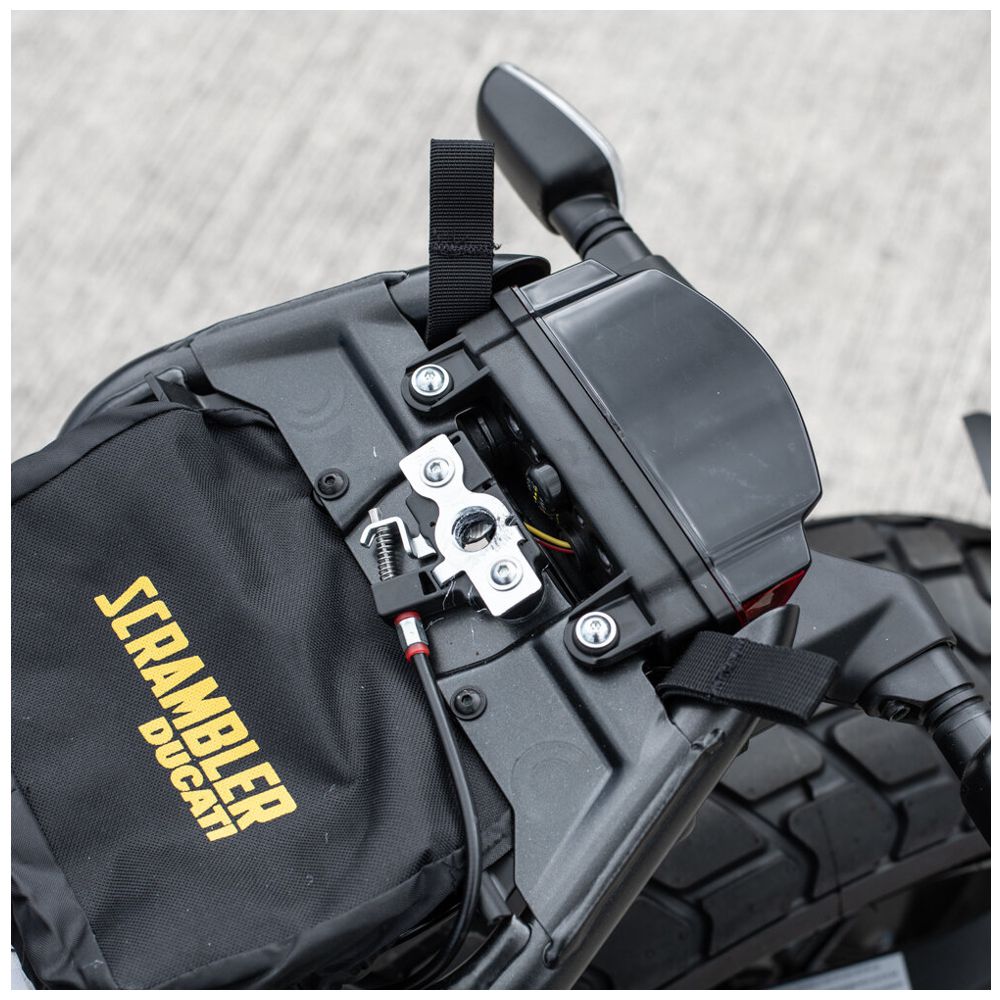

3. Install two loops on the turn signal mounting bolts on the underside of the rear frame.
4. Use the M6 washers and existing bolts to do this.

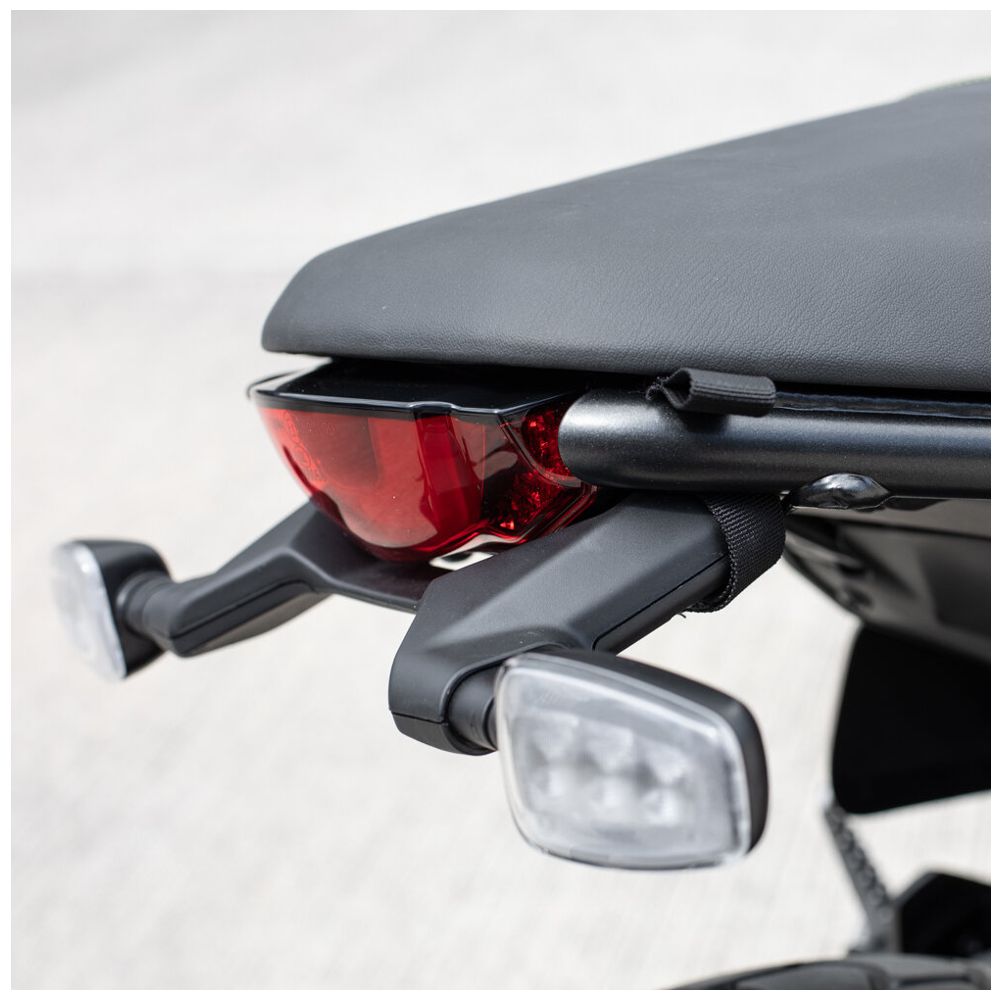

5. The loops can be stowed under the seat and rear frame when not in use.
