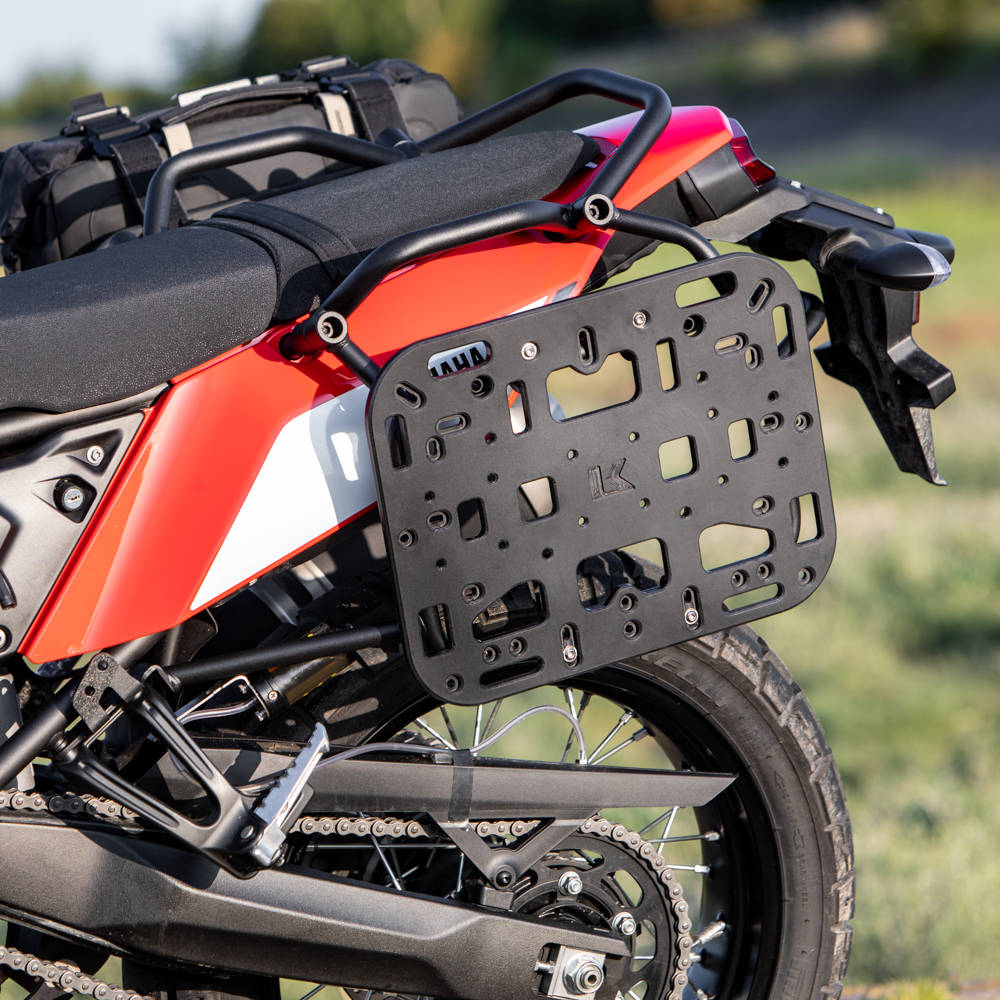

Kriega OS retaining plate for Yamaha Tenere 700

YAMAHA and GIVI pannier racks are designed to mount aluminum cases and do not have a standard flat profile on the exhaust side. This special edition OS plate for the Yamaha Tenere 700 includes a stainless steel adapter to flatten the profile and provides a secure mounting for the OS plate so you can mount the Kriega Soft bags.

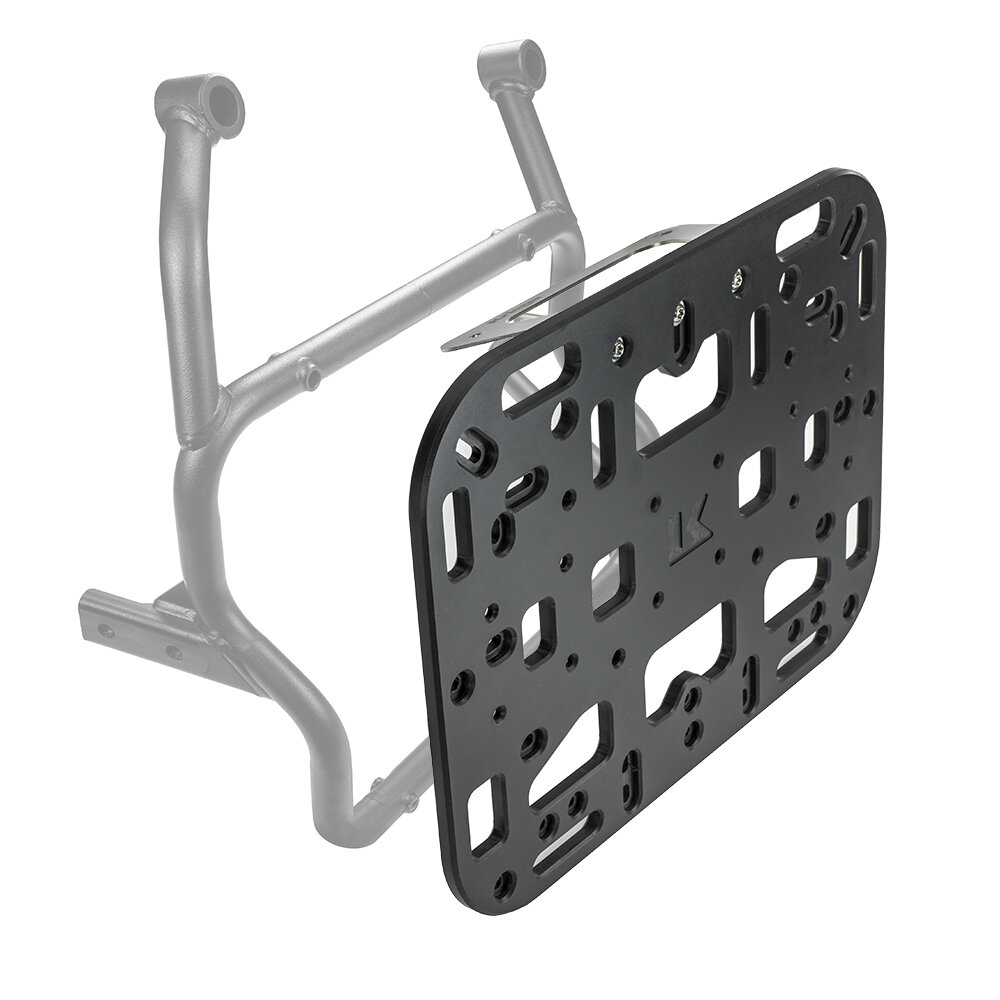

The adapter is laser cut stainless steel that attaches to the OS plate with 3 bolts and Nyloc nuts. It attaches to the top of the BMW frame with 2 aluminum clamps. The remaining 4 clamps attach the OS plate directly to the frame and provide a very strong and stable base to mount an OS case, OS Adventure Packs or Rotopax ™ fuel or water tanks.

The Yamaha case mount on the side opposite the exhaust is flat and therefore a stock OS plate pipe fit from 16mm to 20mm can be easily mounted on this side.

TIP: So you need for both sides once for the exhaust side this adapter here and for the other side the normal with the part number: 65050017UNI (is also linked below again)

Features:

• allows the secure mounting of your Kriega OS bag
• easy to mount
• for Yamaha Tenere 700



Dimensions & weight:

• 390(w)mm x 300(h)mm x 10(d)mm
• 1450g incl. the adapter



Compatibility:

• 16 - 20 mm frame thickness
• Kriega OS bags
• Kriega OS-32 or OS-22 or a single 1.75 rotopax ™ fuel or water tank
• OS-6 or OS-12 ADVANCED PACKAGE with single or double 1-gallon Rotopax ™ fuel / water tanks.

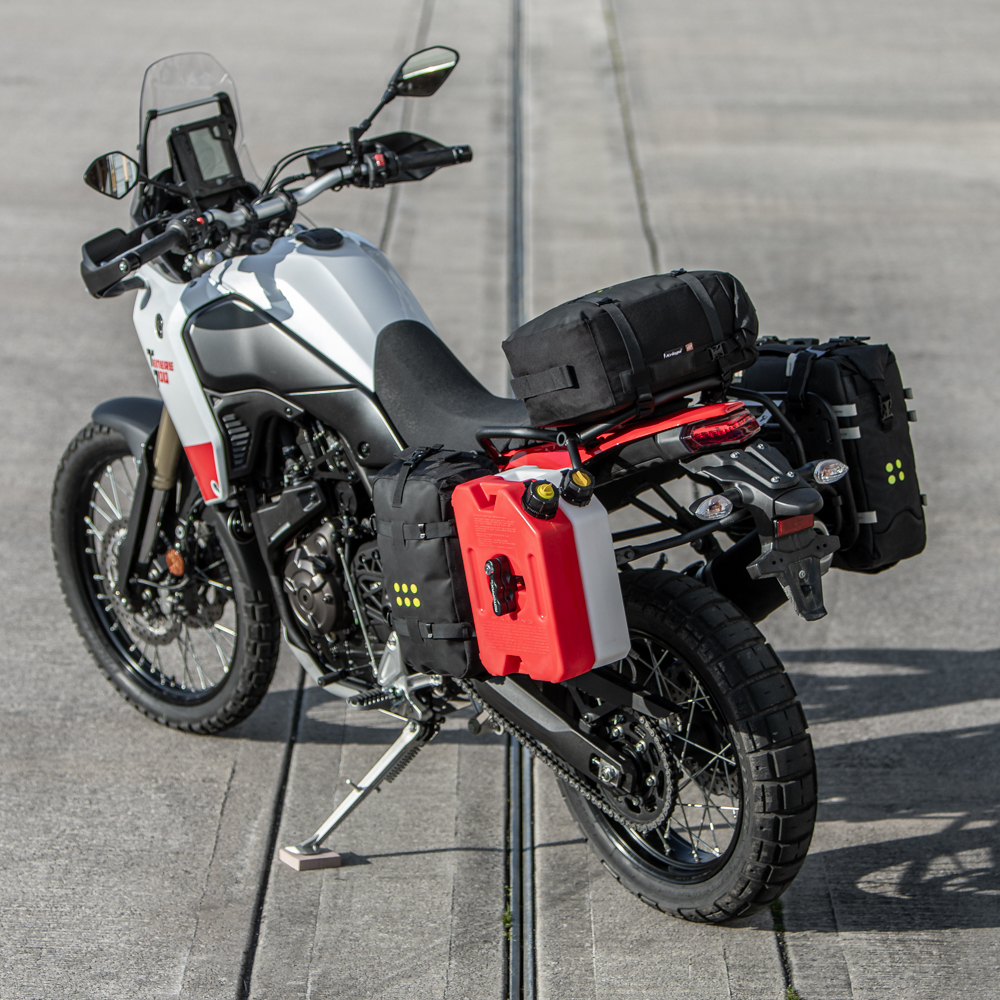

  Info: Rotopax ™ 1.75 & 1 gallon fuel tanks will also fit, but we do NOT recommend mounting fuel tanks on the exhaust side of the motorcycle.

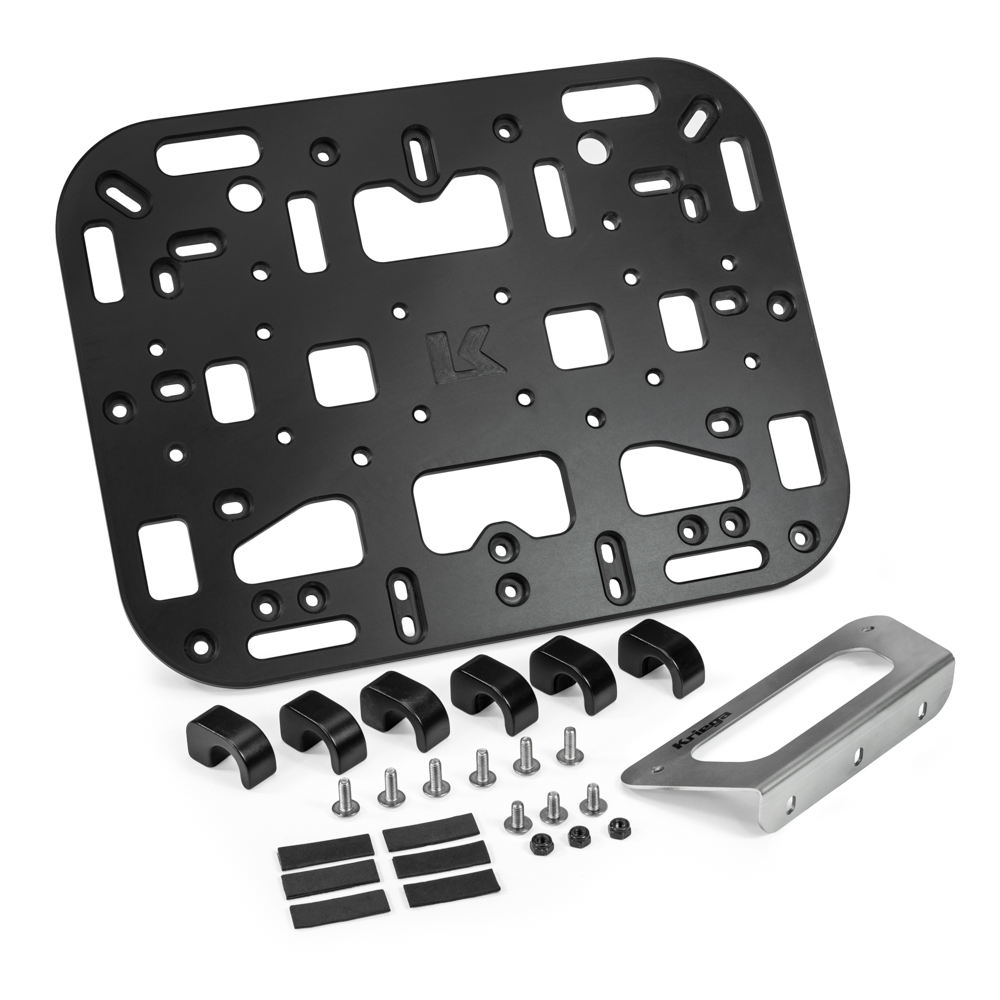

Included in delivery:

• 1 x Kriega mounting plate with adapter for the exhaust side of your Yamaha Tenere 700

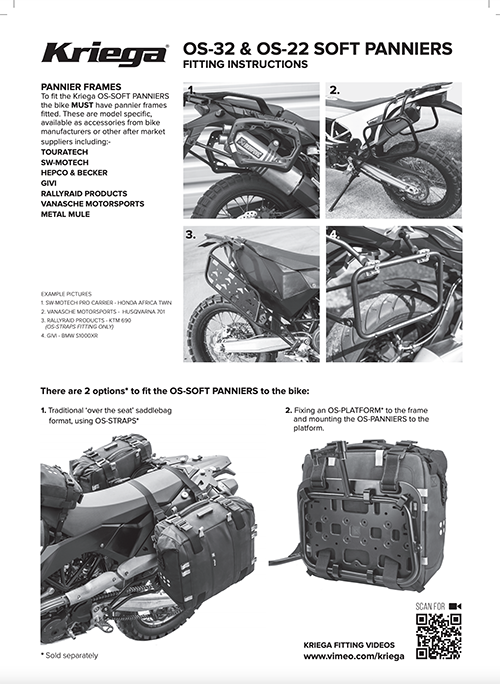

Download instructions:
